What Is ALF

The Active Learning Framework (ALF) automates the construction of structurally diverse datasets for machine learning interatomic potentials (MLIPs) using a query by committee (QBC) active-learning approach.

At a high level, ALF coordinates four core modules:

  • System construction (Builders)

  • Sampling (Samplers)

  • ML model training (ML interfaces)

  • Electronic structure calculations (QM interfaces)

These modules are used to perform the main ALF workflow:

  1. Build initial structures (bootstrap) and label with a QM engine of choice. This step accomplishes initial sampling of the conformational/chemical space.

  2. Train an initial MLIP ensemble from the labeled data.

  3. Sample new structures with ML-driven molecular dynamics.

  4. Send selected high-uncertainty configurations to QM engine for labeling.

  5. Store labeled data in HDF5 files.

  6. Retrain ML ensemble once the number of high-uncertainty configurations exceeds a user-defined threshold. Repeat until no high-uncertainty frames are identified, or the number of ALF iterations is exceeded. Use final MLIP to perform down-stream production task (Not part of ALF).

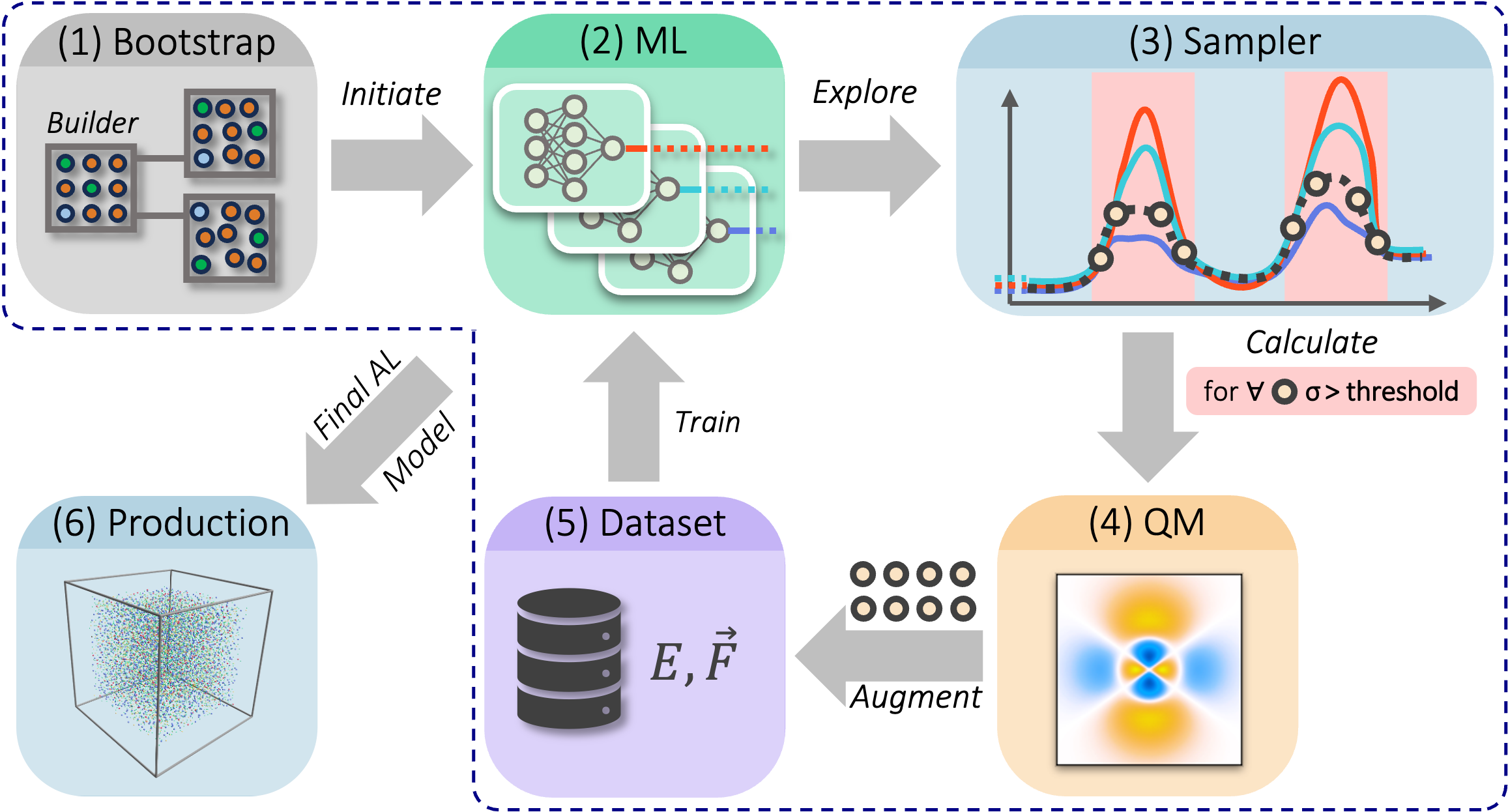

Core ALF workflow from initial sampling (bootstrapping) to production-ready MLIP.

Core ALF workflow from initial sampling (bootstrapping) to production-ready MLIP.

During an iteration, ALF builds candidate structures, samples configurations using the current ML model ensemble, evaluates selected structures with QM, and stores the resulting data for retraining. The newly trained models are then used in the next sampling cycle.

This loop is designed to run for many iterations with minimal user intervention.

Overview of the workflow

ALF uses a master process to orchestrate tasks and data flow between the core stages. The process is typically launched with:

python -m alframework --master master_config.json

The master_config.json file points to the other configuration files and task definitions needed for each stage. In practice, ALF uses five JSON files:

  1. Master configuration — master_config.json

  2. Builder configuration — builder_config.json

  3. Sampler configuration — mlmd_config.json

  4. ML configuration — ml_config.json

  5. QM configuration — qm_config.json

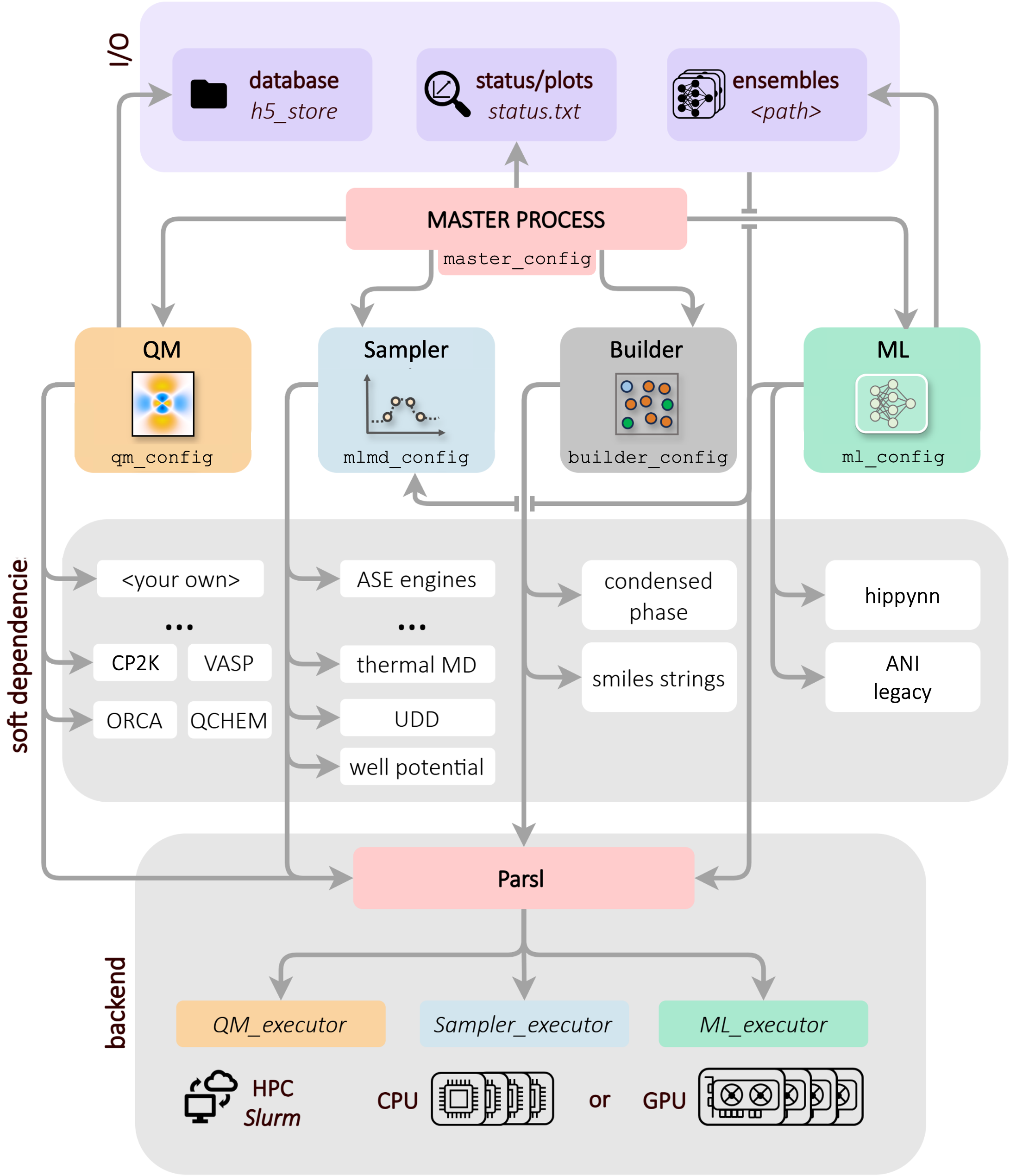

Overview of ALF's code structure.

Overview of ALF’s code structure.

Execution model

ALF is integrated with Parsl for task execution, so jobs can be launched on local resources or queued cluster resources depending on your Parsl config. Resource profiles are defined in alframework/parsl_resource_configs and can be customized for your system.

Testing individual stages

Before long runs, ALF supports stage-level checks:

python -m alframework --master master_config.json --test_builder
python -m alframework --master master_config.json --test_sampler
python -m alframework --master master_config.json --test_ml
python -m alframework --master master_config.json --test_qm

These tests validate each stage independently before running the full active learning workflow.
